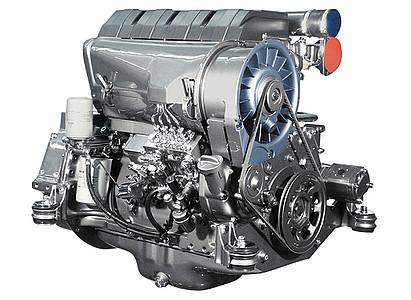

F 3 L 914

3-cylinder turbocharged.
Displacement: 1.1 l / cylinder.
Modular sytem with single cylinder unit.
Advanced injection and combustion system.
Electronic governor on request.
Worldwide approved: more than 3.0 Mio. engines in use.
Only few maintenance points.
Compact power-pack with low weight.

Technical data
Emission norms EU II
Number of cylinders 3
Bore 102 mm4 in
Stroke 132 mm5.2 in
Displacement 3.2 l197 cu in
Maximum nominal speed 2500 rpm
Power output 46 kW62 hp
at speeds 2500 rpm
Max. torque 202 Nm149 lb/ft
at speeds 1500 rpm
Min. idling speed 650 rpm
Specific fuel consumption 215 g/kWh0.35 lb/hph
Length 708 mm27.9 in
Width 646 mm25.4 in
Height 802 mm31.6 in
Weight 277 kg611 lb
Download data sheet (PDF-file)
