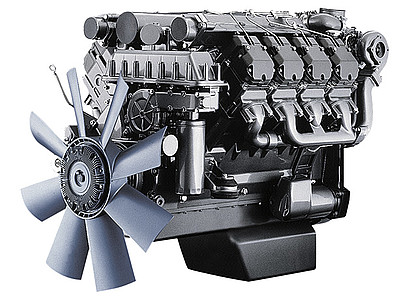

BF 8 M 1015 C

Water-cooled 8-cylinder V-engine.
Turbocharging with charge air cooling.
Four-valve technology.
Injection system with mechanical governor, mechanically actuated/electronically controlled high-pressure injection on request.
Separate gear-driven PTOs, beltless fan drive.
Powerful and rugged engine with a high power-to-volume ratio.
Very compact design.

Technical data
Emission norms EU II, US T2
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 15.9 l970 cu in
Maximum nominal speed 2100 rpm
Power output 400 kW536 hp
at speeds 2100 rpm
Max. torque 2637 Nm1945 lb/ft
at speeds 1200 rpm
Min. idling speed 550 rpm
Specific fuel consumption 204 g/kWh0.34 lb/hph
Length 1151 mm45.3 in
Width 932 mm36.7 in
Height 1170 mm46.1 in
Weight 1060 kg2337 lb
Download data sheet (PDF-file)
