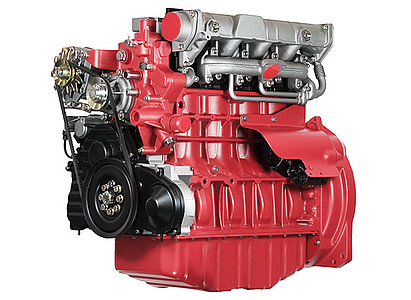

D 2011 L04

Water- cooled 4-cylinder aspirated engine in inline construction.
Direct injection with single injection pumps and optional electronic governor.
Minimised running costs due to low maintenance need and little wear.
Best cold starting performance even under extreme conditions.
The robust engine design allows worldwide operation even with high sulphur fuels.
Low fuel consumption due to optimised combustion.
Long oil change intervals of up to 1000 hours.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 94 mm3.7 in
Stroke 112 mm4.4 in
Displacement 3.1 l190 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 28 kW38 hp
Typical generator power (PRP) 29 kW39 hp
Typical generator power (LTP) 31 kW42 hp
Length 1065 mm42 in
Width 645 mm25 in
Height 780 mm31 in
Weight 303 kg668 lb
Download data sheet (PDF-file)
