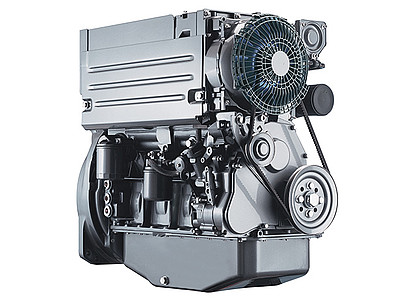

F 4 L 2011

Oil-cooled 4-cylinder aspirated engine in inline construction with integrated cooling system.
4-cylinder also with turbocharging.
Direct injection with single injection pumps and optional electronic governor.
Low fuel consumption due to optimised combustion.
Long oil change intervals of up to 1000 hours.
Minimised running costs due to low maintenance need and little wear.
High reliability combined with durability. No corrosion or cavitation due to oil cooling and lubrication.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU II, US T2
Number of cylinders 4
Bore 94 mm3.7 in
Stroke 112 mm4.4 in
Displacement 3.1 l190 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 26 kW34.8 hp
Typical generator power (PRP) 28 kW37.5 hp
Typical generator power (LTP) 29 kW38.9 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 31 kW41.6 hp
Typical generator power (PRP) 33 kW44.3 hp
Typical generator power (LTP) 35 kW46.9 hp
Length 868 mm34.2 in
Width 588 mm23.1 in
Height 722 mm28.4 in
Weight 293 kg646 lb
Download data sheet (PDF-file)
