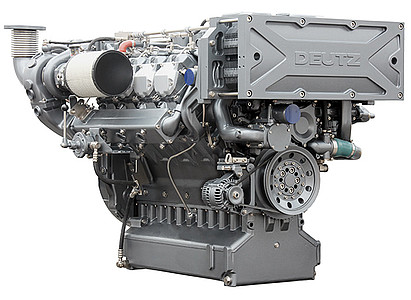

TCD 2015 V6 M

Water-cooled 6-cylinder V engine (90°) with turbocharging and charge air cooling.
The powerful and robust solenoid valve injection system (MVS) and the electronic engine control (EMR 3) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
100% power take-off at flywheel and front end and additionally two PTO drives with a total torque of up to 400
Low fuel consumption, low maintenance costs and long engine life reduce the operating costs.
The engines comply with the emission limits in accordance with IMO, EU, ZKR and EPA.
The engine-driven cooling water pumps simplify the installation for keel and rawwater cooling.
The extremly compact engine design and customer friendly accesoires reduce the installation costs.
DEUTZ marine engines are developed especially for the requirements of marine applications and meet the requirements of the classification societies.Type Approvals of the IACS classes and other classes are available on request.

Technical data
Number of cylinders 6
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 11.9 l726 cu in
Propulsion engines LG A 327 kW439 hp
Propulsion engines LG B 360 kW483 hp
Specific fuel consumption 210 g/kWh0.34 lb/hph
Length 1495 mm58.9 in
Width 1316 mm51.8 in
Height 1140 mm44.9 in
Weight 1330 kg2932 lb
Download data sheet (PDF-file)
