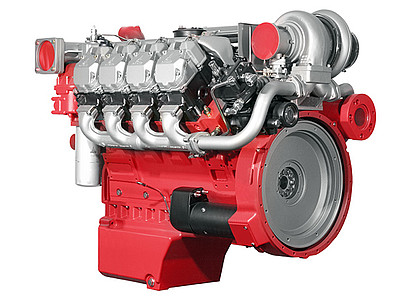

TCD 2015 V08 (Agri)

Engine for agricultural machinery.
V-engine with 90° angle.
turbocharging and charge air cooling, four-valve technology
Extremely compact and powerful with high power density.
Electronic injection system controlled via solenoid valves.
Tried, tested and proven technology, equipped with acoustically optimised components

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 8
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 11.9 l726 cu in
Maximum nominal speed 2100 rpm
Power output 500 kW671 hp
at speeds 2100 rpm
Max. torque 2890 Nm2132 lb/ft
at speeds 1400 rpm
Min. idling speed 600 rpm
Specific fuel consumption 207 g/kWh0.34 lb/hph
Length 1141 mm44.9 in
Width 932 mm36.7 in
Height 1172 mm46.1 in
Weight 1245 kg2745 lb
Download data sheet (PDF-file)
