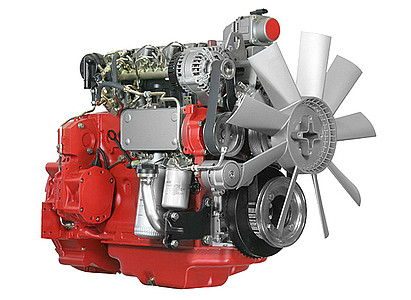

TCD 2012 L4 (Agri)

Engine for agricultural machinery.
Modern, water-cooled 4-cylinder in-line engine.
Turbocharging with charge air cooler
Robust engine with high power density
Power take-off options integrated into the gear drive
Electronic engine control with intelligent adaptation to drive management
High-pressure fuel injection with DEUTZ common rail system (DCR®)
4-cylinder optional with mechanical injection system up to 88 kW

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 101 mm4 in
Stroke 126 mm5 in
Displacement 4 l247 cu in
Maximum nominal speed 2400 rpm
Power output 103 kW138 hp
at speeds 2400 rpm
Max. torque 520 Nm384 lb/ft
at speeds 1600 rpm
Min. idling speed 650 rpm
Specific fuel consumption 215 g/kWh0.35 lb/hph
Length 791 mm31.1 in
Width 628 mm24.7 in
Height 823 mm32.4 in
Weight 400 kg882 lb
Download data sheet (PDF-file)
