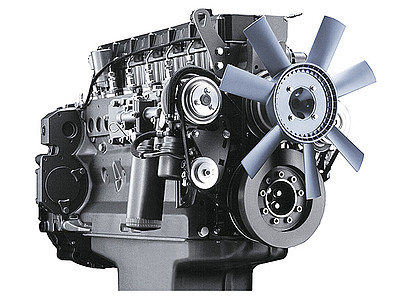

BF 6 M 1013 EC (Agri)

Engine for agricultural machinery.
Modern water-cooled 6-cylinder in-line engine. Turbocharging with charge air cooling (BFM1013EC/P).
High-pressure fuel injection up to 1600 bar.
Electronic engine governor with diagnostic facilities as option.
100% PTO capability at flywheel end and front end.
Three options for installation of gear-driven hydraulic pumps.
Long maintenance intervals and user-friendly maintenance design.
Customer service available worldwide.

Technical data
Emission norms EU II, US T2
Number of cylinders 6
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 7.2 l439 cu in
Maximum nominal speed 2300 rpm
Power output 165 kW221 hp
at speeds 2300 rpm
Max. torque 854 Nm630 lb/ft
at speeds 1400 rpm
Min. idling speed 800 rpm
Specific fuel consumption 208 g/kWh0.34 lb/hph
Length 1177 mm46.3 in
Width 574 mm22.6 in
Height 1001 mm39.4 in
Weight 572 kg1261 lb
Download data sheet (PDF-file)
